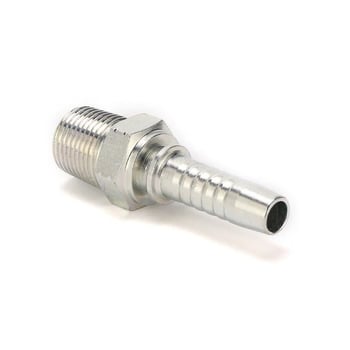

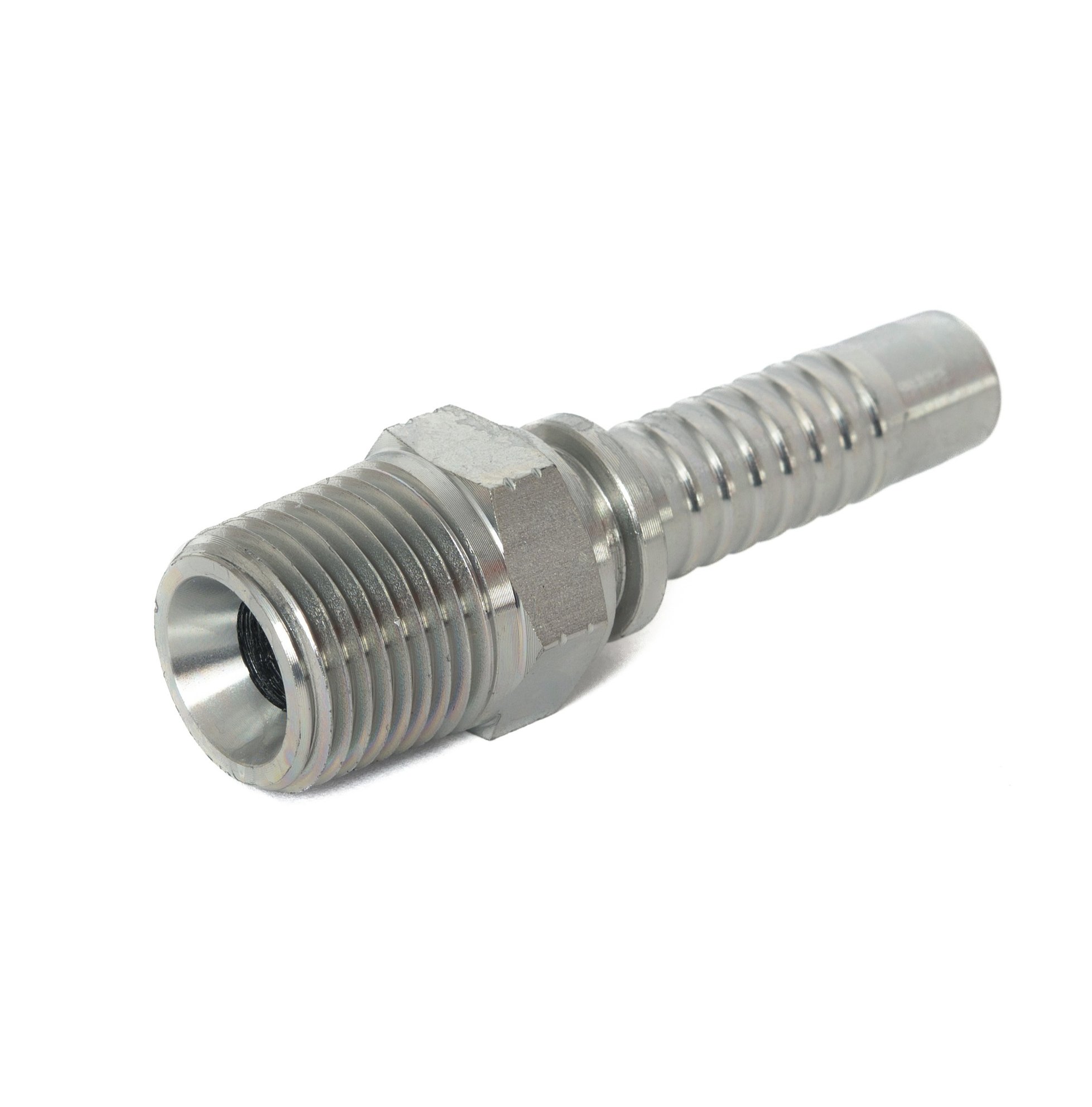

Espiga Recta Macho Rosca NPTF
| Modelo |
Rosca | Diámetro Manguera |
Tipo de Manguera | Dimensiones [mm] |
||||
| E | DN | Dash | A | C | S1 | |||
| HC-APCRB04N06 | z 1/4" x 18 | 10 | 06 | 1 y 2 Mallas |
28.0 | 15.0 | 17.0 | |
| HC-APCRB06N06 | z 3/8" x 18 | 10 | 06 | 30.0 | 16.0 | 19.0 | ||
| HC-APCRB06N08 | z 3/8" x 18 | 12 | 08 | 30.5 | 16.0 | 22.0 | ||
| HC-APCRD08N08 | z 1/2" x 14 | 12 | 08 | 4 Mallas | 34.5 | 19.5 | 22.0 | |
| HC-APCRD12N12 | z 3/4" x 14 | 20 | 12 | 38.5 | 19.5 | 27.0 | ||
| HC-APCRD16N16 | z 1" x 11,5 |
25 | 16 | 46.7 | 25.5 | 36.0 | ||
