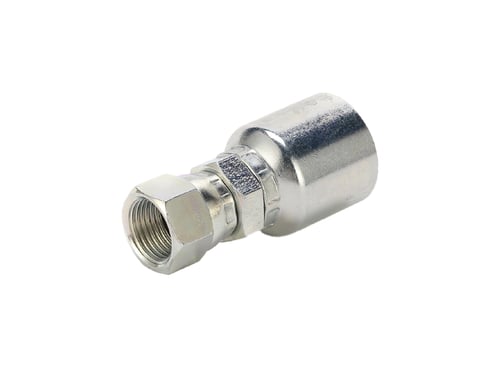

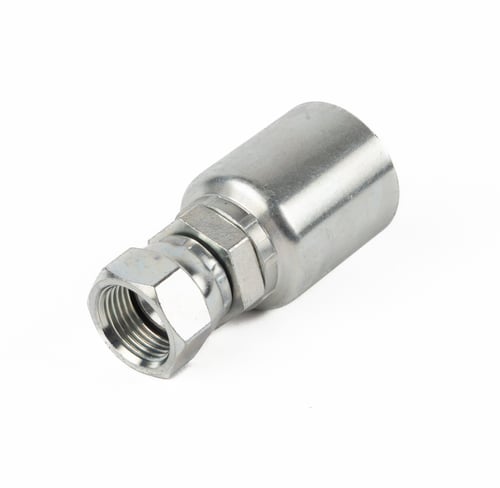

Recto Hembra Rosca JIC 74° Asiento Cónico
| Modelo |
Rosca | Diámetro Manguera |
Tipo de Manguera | Dimensiones [mm] |
|||||||
| E | DN | Dash | A | B | C | S1 | S2 | ||||
| HC-BCFRB06J06 | 9/16" x 18 | 10 | 06 | 1 y 2 Mallas |
58.0 | 10.2 | 29.5 | 17.16 | 19.0 | ||
| HC-BCFRB08J08 | 3/4" x 16 | 12 | 08 | 66.5 | 10.8 | 32.5 | 20.64 | 24.0 | |||
| HC-BCFRB10J10 | 7/8" x 14 | 16 | 10 | 74.0 | 12.3 | 35.2 | 24.00 | 27.0 | |||
| HC-BCFRB12J12 | 1 + 1/16" x 12 | 20 | 12 | 81.0 | 14.5 | 41.9 | 27.00 | 32.0 | |||
| HC-BCFRB16J16 | 1 + 5/16" x 12 | 25 | 16 | 92.0 | 15.5 | 47.2 | 35.00 | 38.0 | |||
| HC-BCFRD06J06 | 9/16" x 18 | 10 | 06 | 4 Mallas |
58.2 | 10.2 | 29.2 | 17.46 | 19.0 | ||
| HC-BCFRD08J08 | 3/4" x 16 | 12 | 08 | 65.5 | 10.8 | 31.0 | 20.64 | 24.0 | |||
| HC-BCFRD10J10 | 7/8" x 14 | 16 | 10 | 72.0 | 12.3 | 35.2 | 24.00 | 27.0 | |||
| HC-BCFRD12J12 | 1 + 1/16" x 12 | 20 | 12 | 80.0 | 14.5 | 40.9 | 27.00 | 32.0 |
|||
| HC-BCFRD16J16 | 1 + 5/16" x 12 | 25 | 16 | 91.0 | 15.5 | 44.2 | 35.00 | 38.0 |
|||
