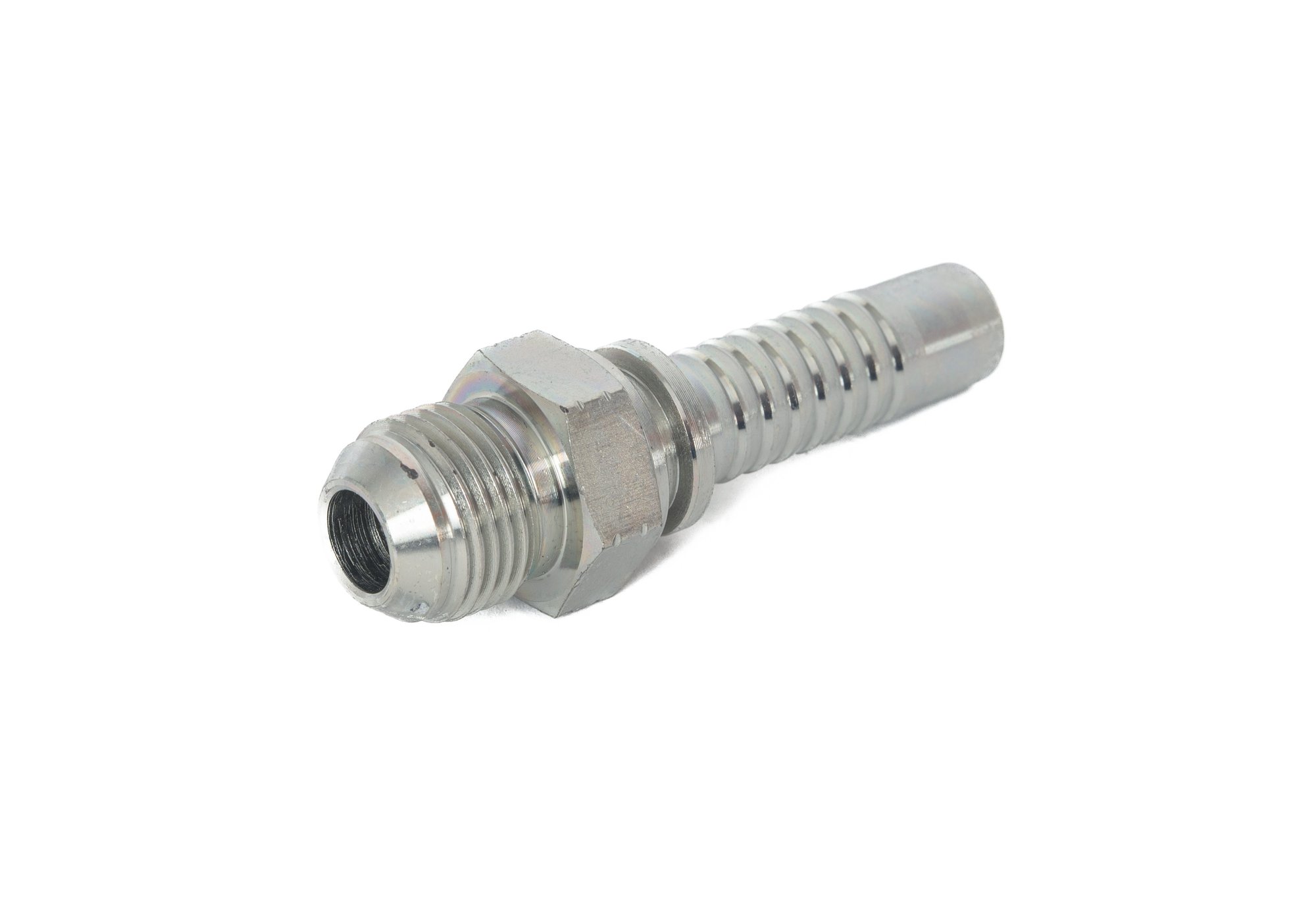

Espiga Recta Macho Rosca JIC 74° Asiento Cónico
| Modelo |
Rosca | Diámetro Manguera |
Tipo de Manguera | Dimensiones [mm] |
|||
| E | DN | Dash | A | C | S1 | ||
| HC-APCRB05J06 | 1/2" x 20 | 10 | 06 | 1 y 2 Mallas |
26.5 | 14.0 | 17.0 |
| HC-APCRB06J06 | 9/16" x 18 | 10 | 06 | 26.5 | 14.0 | 17.0 | |
| HC-APCRB06J08 | 3/4" x 16 |
10 | 06 | 31.5 | 16.7 | 22.0 | |
| HC-APCRB10J08 | 7/8" x 14 |
12 | 08 | 35.0 | 19.5 |
24.0 |
|
| HC-APCRB08J12 | 1 + 1/16" x 12 |
12 | 08 | 39.0 | 22.0 | 27.0 | |
| HC-APCRB12J16 | 1 + 1/16" x 12 |
25 | 16 | 42.7 | 22.0 | 36.0 | |
| HC-APCRD08J08 | 3/4" x 16 |
12 | 08 | 4 Mallas |
32.0 | 16.7 |
22.0 |
| HC-APCRD10J08 | 7/8" x 14 |
12 | 08 | 35.0 | 19.5 | 24.0 | |
| HC-APCRD08J12 | 1 + 1/16" x 12 |
12 | 08 | 39.0 | 22.0 | 27.0 | |
| HC-APCRD12J12 | 1 + 1/16" x 12 |
25 | 12 | 40.0 | 22.0 | 27.0 | |
| HC-APCRD12J16 | 1 + 5/16" x 12 | 20 | 16 | 42.7 |
22.0 | 36.0 | |
| HC-APCRD16J16 | 1 + 5/16" x 12 | 20 | 16 | 44.2 | 23.0 | 36.0 | |
