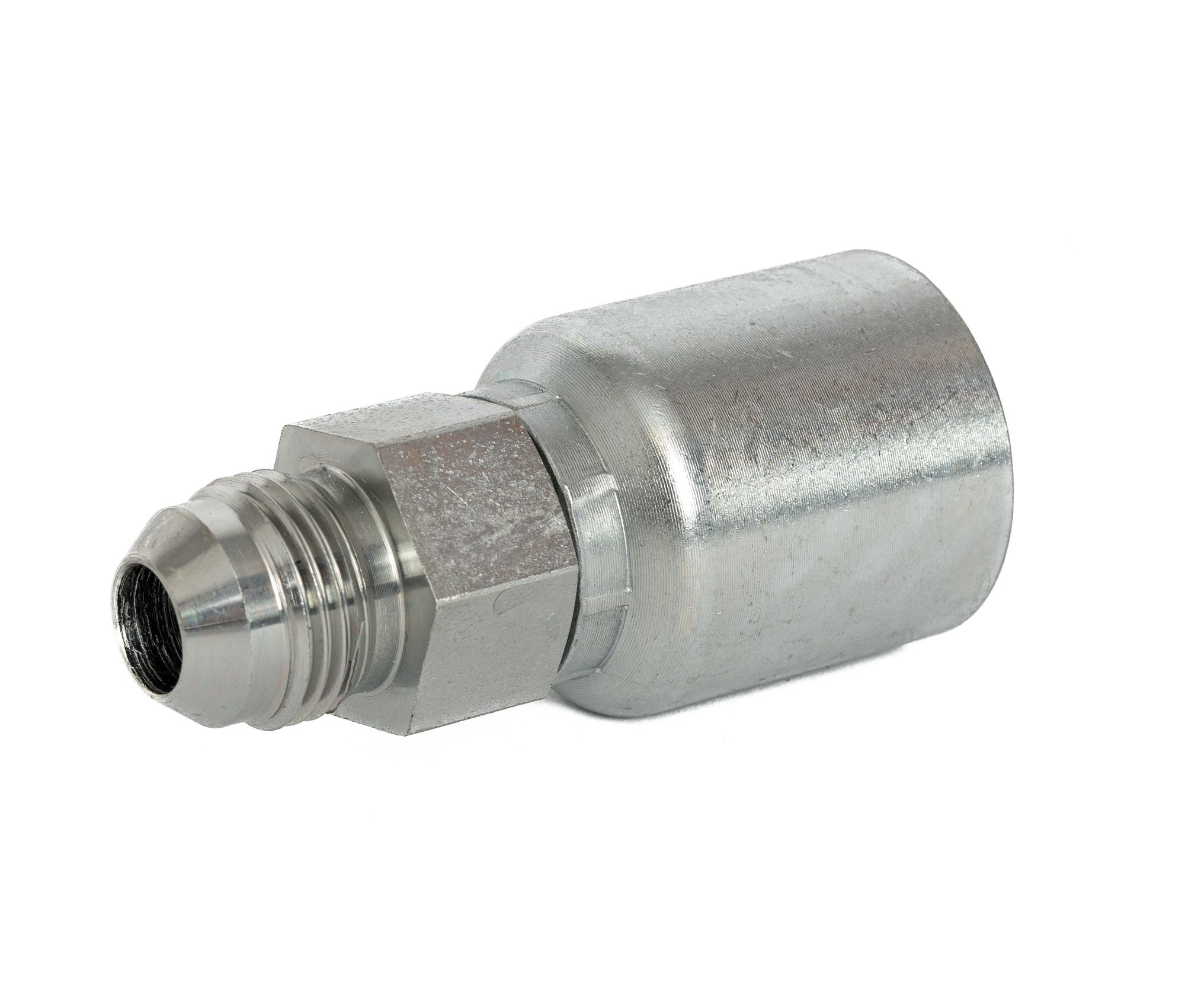

Recto Macho Rosca JIC 37°
| Modelo |
Rosca | Diámetro Manguera |
Tipo de Manguera | Dimensiones [mm] |
|||||
| E | DN | Dash | A | B | S1 | ||||
| HC-BPCRB04J04 | 7/16" x 20 | 6 | 04 | 1 y 2 Mallas |
51.0 | 31.0 | 9/16" | ||
| HC-BPCRB06J04 | 9/16" x 18 | 6 | 04 | 47.0 | 28.0 | 11/16" | |||
| HC-BPCRB06J06 | 9/16" x 18 | 10 | 06 | 60 | 31.5 | 19 | |||
| HC-BPCRB08J06 | 3/4" x 16 | 10 | 06 | 58 | 29.5 | 22.22 | |||
| HC-BPCRB08J08 | 3/4" x 16 | 12 | 08 | 68 | 34 | 22.22 | |||
| HC-BPCRB08J10 | 7/8" x 14 | 12 | 08 | 63.5 | 35 | 24 | |||
| HC-BPCRB10J10 | 7/8" x 14 | 16 | 10 | 77 | 38.2 | 24 | |||
| HC-BPCRB12J10 | 1+1/16" x 12 | 16 | 10 | 78.0 | 41.0 | 1+1/8" | |||
| HC-BPCRB12J12 | 1+1/6" x 12 | 20 | 12 | 81 | 41.9 | 28.5 | |||
| HC-BPCRB16J12 | 1+5/16" x 12 | 20 | 12 | 77.0 | 41.0 | 1+3/8" | |||
| HC-BPCRB16J16 | 1+5/8" x 12 |
25 | 16 | 92 | 47.2 | 35 | |||
