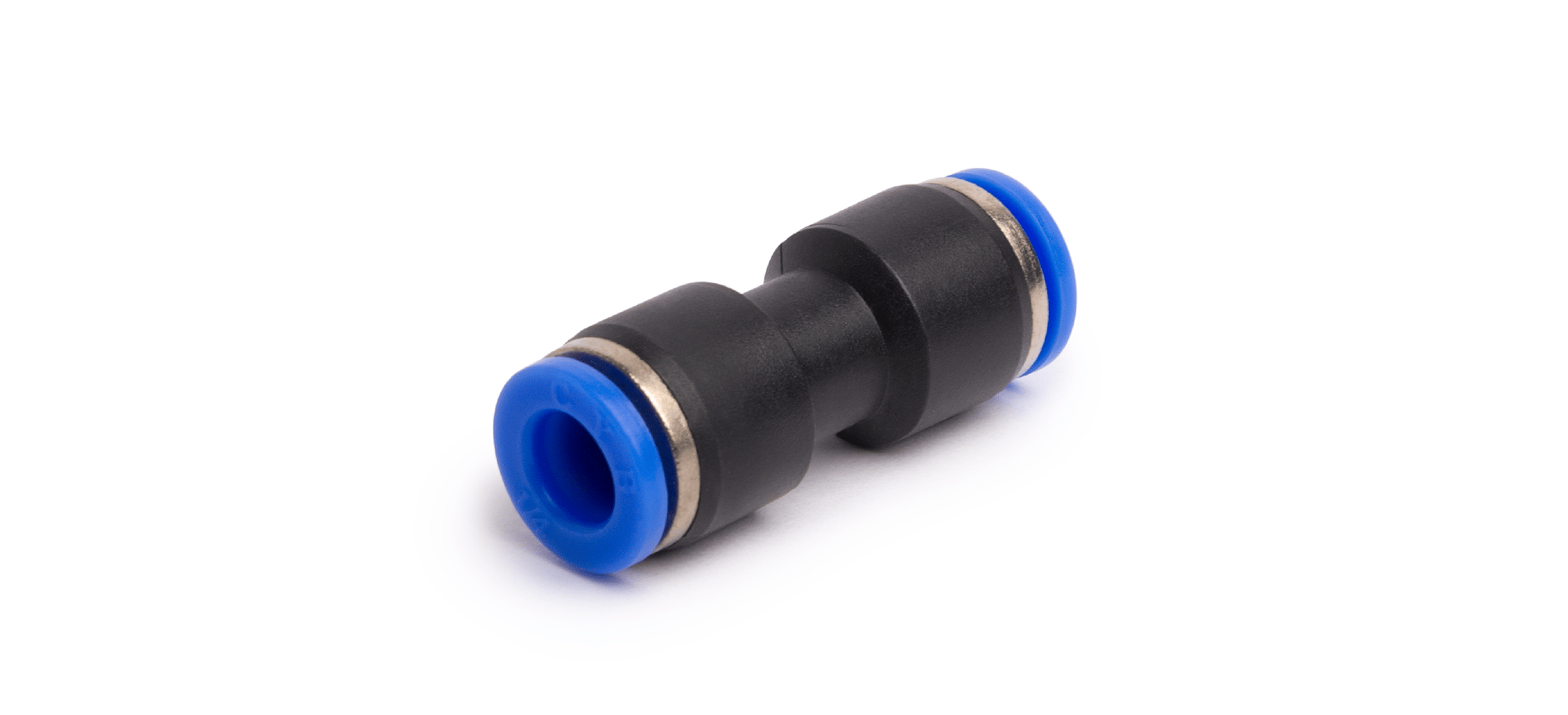

PPG Conexión Unión Reducción
Fluido de trabajo: Aire comprimido
Presión de trabajo máxima: 150 [PSI]
Presión de trabajo negativa: -29.5 [in Hg]
Temperatura de trabajo: [0 - 60] °C
Material del manguito de liberación: Polióxido de Metileno
Material de los sellos: NBR
Material del cuerpo: Polibutileno Tereftalato (PBT)
Mangueras aplicables: Poliuretano y Nylon
| Modelo | Diámetro externo 1 (ØD) | Diámetro externo 2 (ØD) |
| AC-PPG0604B | 6 mm | 4 mm |
| AC-PPG0804B | 8 mm | 4 mm |
| AC-PPG0806B | 8 mm | 6 mm |
| AC-PPG1006B | 10 mm | 6 mm |
| AC-PPG1008B | 10 mm | 8 mm |
| AC-PPG1206B | 12 mm | 6 mm |
| AC-PPG1208B | 12 mm | 8 mm |
| AC-PPG1210B | 12 mm | 10 mm |
| AC-PPG1612B | 16 mm | 12 mm |
| AC-PPG1/41/8B | 1/4 “ | 1/8 “ |
| AC-PPG3/8N2B | 3/8 “ | 1/4 “ |
| AC-PPG1/21/4B | 1/2 “ | 1/4 “ |
| AC-PPG1/2N3B | 1/2 “ | 3/8 “ |
