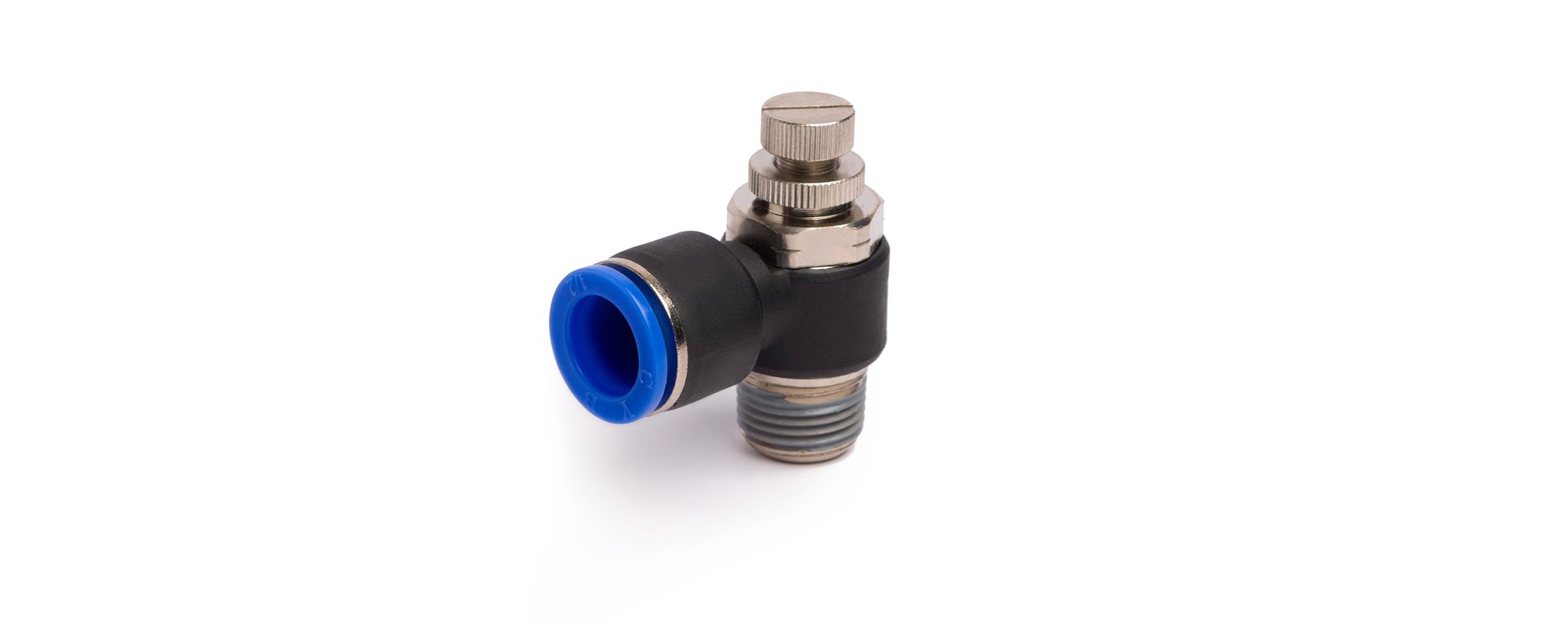

NSC Regulador de Caudal de 90°
Fluido de trabajo: Aire comprimido
Presión de trabajo máxima: 150 [PSI]
Presión de trabajo negativa: -29.5 [in Hg]
Temperatura de trabajo: [0 - 60] °C
Material del manguito de liberación: Polióxido de Metileno
Material de los sellos: NBR
Material del cuerpo: Polibutileno Tereftalato (PBT)
Mangueras aplicables: Poliuretano y Nylon
| Modelo | Diámetro externo (ØD) | Rosca |
| AR-NSC04M5B | 4 mm | M5 |
| AR-NSC04M6B | 4 mm | M6 |
| AR-NSC04R1B | 4 mm | R 1/8 “ |
| AR-NSC04R2B | 4 mm | R 1/4 “ |
| AR-NSC06M5B | 6 mm | M5 |
| AR-NSC06M6B | 6 mm | M6 |
| AR-NSC06R1B | 6 mm | R 1/8 “ |
| AR-NSC06R2B | 6 mm | R 1/4 “ |
| AR-NSC06R3B | 6 mm | R 3/8 “ |
| AR-NSC06R4B | 6 mm | R 1/2 “ |
| AR-NSC08R1B | 8 mm | R 1/8 “ |
| AR-NSC08R2B | 8 mm | R 1/4 “ |
| AR-NSC08R3B | 8 mm | R 3/8 “ |
| AR-NSC08R4B | 8 mm | R 1/2 “ |
| AR-NSC10R1B | 10 mm | R 1/8 “ |
| AR-NSC10R2B | 10 mm | R 1/4 “ |
| AR-NSC10R3B | 10 mm | R 3/8 “ |
| AR-NSC10R4B | 10 mm | R 1/2 “ |
| AR-NSC12R2B | 12 mm | R 1/4 “ |
| AR-NSC12R3B | 12 mm | R 3/8 “ |
| AR-NSC12R4B | 12 mm | R 1/2 “ |
| AR-NSC1/4M5B | 1/4 “ | M5 |
| AR-NSC1/4N1B | 1/4 “ | 1/8 “ NPT |
| AR-NSC1/4N2B | 1/4 “ | 1/4 “ NPT |
| AR-NSC1/4N3B | 1/4 “ | 3/8 “ NPT |
| AR-NSC1/4N4B | 1/4 “ | 1/2 “ NPT |
| AR-NSC3/8N1B | 3/8 “ | 1/8 “ NPT |
| AR-NSC3/8N2B | 3/8 “ | 1/4 “ NPT |
| AR-NSC3/8N3B | 3/8 “ | 3/8 “ NPT |
| AR-NSC3/8N4B | 3/8 “ | 1/2 “ NPT |
| AR-NSC1/2N2B | 1/2 “ | 1/4 “ NPT |
| AR-NSC1/2N3B | 1/2 “ | 3/8 “ NPT |
| AR-NSC1/2N4B | 1/2 “ | 1/2 “ NPT |
